A dinghy that slowly deflates is a common problem. In many cases, the cause is not the fabric, but the valve of your inflatable boat. Especially with older boats or intensive use, a valve can wear out or become contaminated, meaning it no longer seals properly.
In this article we explain how to replace a Zodiac valve, when this is necessary and what to look out for.
Why is my Zodiac inflatable boat deflating?
When a tube loses pressure, people often immediately assume there is a leak in the material. However, the cause is often the valve.
Common causes are a worn sealing ring, dirt or salt that has built up in the valve, or a valve that is no longer properly tightened. The valve itself may also be damaged or aged.
For that reason, it is wise to always check the valve first before carrying out any further repairs.
How do you check whether the valve is leaking?
Before you replace the valve, it is important to be sure that the leak is actually being caused by the valve.
Inflate the boat fully and make sure all valves are properly closed. Screw the valve cap firmly onto the valve so it is completely airtight.
Then apply a mixture of water and washing-up liquid around the valve. Watch closely to see whether small air bubbles form. If you see bubbles, air is escaping and there is a good chance the valve is the cause.
If no bubbles remain visible, also check the seams and the tube fabric. In that case, the cause is probably not the valve.
It can also happen that the valve is not faulty, but simply not tightened properly. First try carefully tightening the valve before proceeding with replacement.
When should you replace a valve?
You need to replace a valve when it no longer seals properly or is visibly damaged. You may notice this, for example, if the boat slowly deflates without any obvious damage, or if you hear air escaping at the valve while the valve cap is correctly tightened.
In some cases, replacement is not immediately necessary and cleaning the valve or tightening it again is sufficient.
Which valve do you need for your Zodiac?
Zodiac uses different valve types depending on the model and year of manufacture of the boat. It is therefore important to choose the correct valve.
Pay attention to the boat type, such as Cadet, Yachtline, Pro or Explorer, as well as the valve diameter and thread.
Not sure which valve is suitable for your inflatable boat? Then view our range:
View all Zodiac valves and parts
Replacing a Zodiac valve: step by step
Replacing a valve is relatively straightforward if you work carefully.
Note: this method mainly applies to the most common semi-recessed Zodiac valves.
With top-mounted valves (such as type Z61928, for example), installation and removal may differ slightly.
If you are unsure which type of valve your inflatable boat has, check this first before you start replacing it.
Replacing a valve insert vs replacing a complete valve
Always start by fully deflating the boat so there is no longer any pressure on the tube.

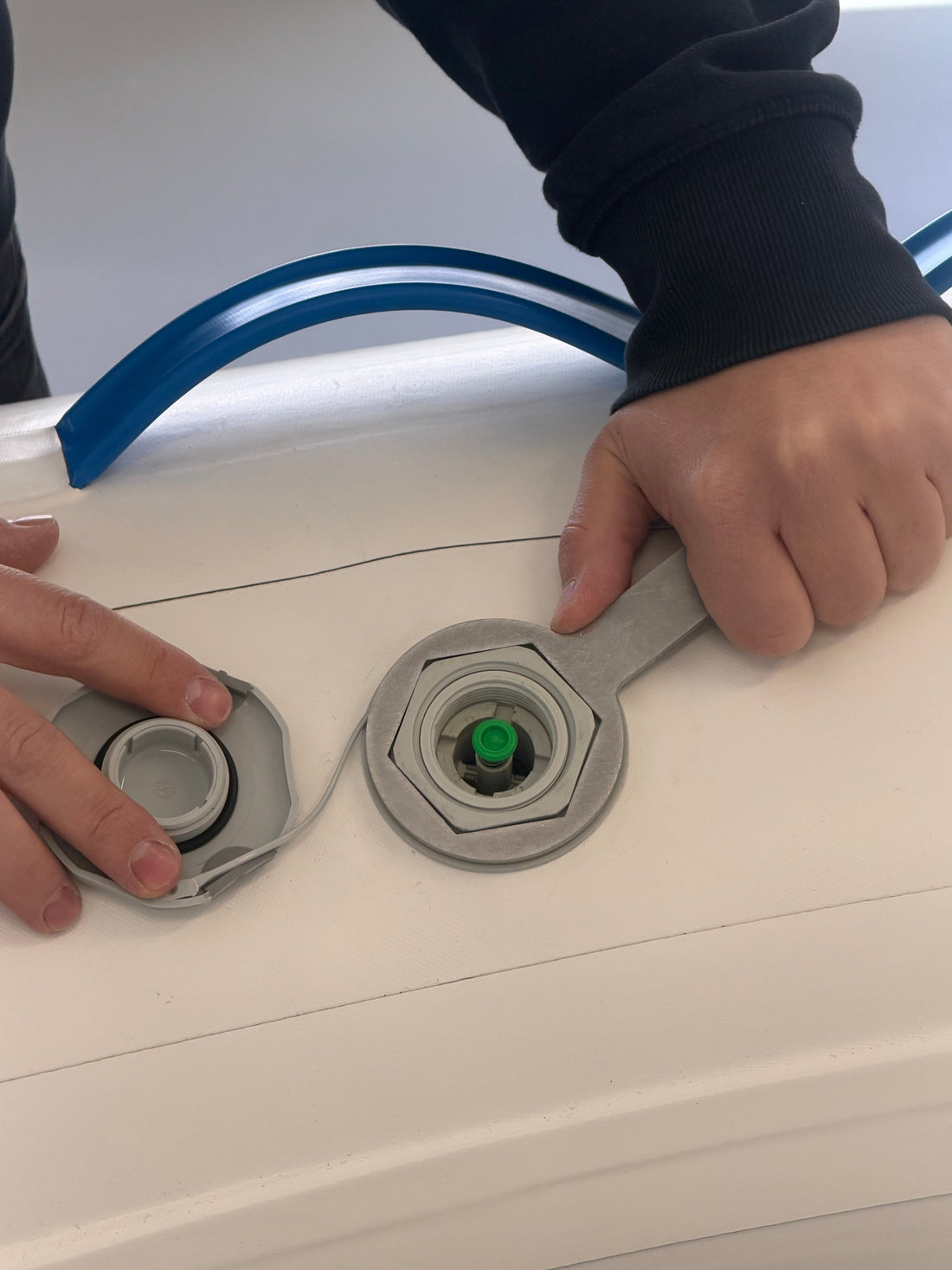

If you only want to replace the valve insert, first unscrew the valve insert from the valve housing using a special valve wrench. In many cases, this is enough to solve the problem. For this you can use the Z7057 valve wrench.
If you want to replace the entire valve, including the housing, unscrew the complete valve using a valve wrench. Make sure the inner part does not fall into the tube. For the current valves (used on Zodiac models from 2009 onwards), you can use the Z3286 valve wrench.
After removing the valve, check the seal. If it is worn, this may already be the cause of the problem.
Then fit the new valve and make sure the inner and outer parts align properly. Tighten the valve firmly, but avoid overtightening it.
Finally, inflate the boat again and check with soapy water whether any air is still escaping.
For replacement, you often need a valve wrench:
View the valve wrenches
How much does it cost to replace a valve?
The cost of replacing a valve is relatively low. Depending on the valve type and the part you want to replace, you typically pay between €15 and €75.
This makes replacing a valve often a simple and affordable solution for fixing a leak.
Common mistakes when replacing a valve
The same mistakes are often made when replacing a valve. Overtightening the valve can cause damage, while using the wrong type of valve can allow the leak to continue.
It can also happen that the inner part drops into the tube, or that no leak check is carried out after installation.
Working calmly and carefully helps you avoid these problems.
Clean first or replace straight away?
A leaking valve is not always defective straight away. In many cases, dirt or salt gets between the seal, preventing the valve from closing properly.
In that case, cleaning the valve may already be sufficient. If the problem persists, replacement is the best solution.
Conclusion
A leaking valve is a common problem on inflatable boats, but fortunately easy to fix. By checking the valve, cleaning it if necessary and replacing it when needed, you prevent further issues and keep your boat in good condition.
